MW LF-CC260A

Product Introduction

MW LF-CC260A

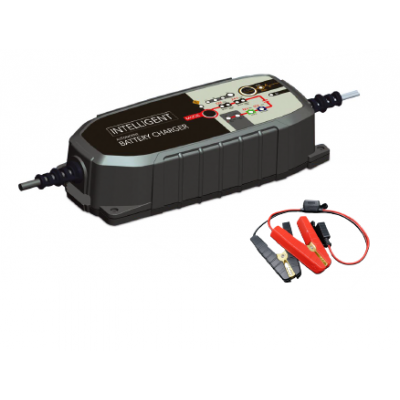

26A 12V/ 16V/ 24V 10 steps Intelligent Battery Charger for Household Automotive
13.6V Power Supply
With CC/CV Control for LiFePO4 & Lead Acid Battery of Wet, MF, VRLA, AGM & GEL

Input: 220-240V AC, 50Hz, 3.6A
Output current: 26A (max)
Charging voltage:
Lead acid (normal): 14.7/29.4V DC
Cold/AGM: 14.8/29.6V DC
16V AGM Racing: 19.6VDC
16V LITHIUM Racing:19.45VDC
LiFePO4; 12.8V/4 cells 30 Ah-200Ah
and 16V/4 cells 25Ah-250Ah
Charging current:
12V lead acid: 26A
24V lead acid: 13A
LiFePO4: 26A
13.6V Power Supply: 5.0A
Insulation: IP 20 (Dust and Water proof)

Packed with:
(1) MW CC-BC1:
Battery Clamp Connector
(2) MW CC-ET1:
Eyelet Terminal Connector
Dimension: 330 x 146 x 77mm
Packing: Individual color giftbox

Protection:
√ Short circuit protection
√ Overload protection
√ Wrong polarity protection
√ Reverse battery protection
√ Safety timer protection
