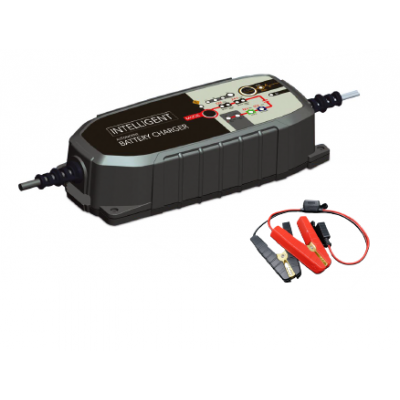

MW LF-CC150A

Product Introduction

MW LF-CC150A

15A 12V/24V 10 steps Intelligent Battery Charger for Household Automotive
13.6V Power Supply
With CC/CV Control for LiFePO4 & Lead Acid Battery of Wet, Gel, MF & AGM
Input: 220-240V AC, 50Hz, 2.0A

Output current: 15A (max)
Charging voltage:
Lead acid (normal): 14.5/29.0V DC
Cold/AGM: 14.7/29.4V
LiFePO4; 12.8V/4 cells
Charging current:
12V lead acid: 15 A
24V lead acid: 7.5A
LiFePO4: 15A
13.6V Power Supply: 5.0A
Insulation:
IP 65 (Dust and Water proof)

Protection:
√ Short circuit protection
√ Overload protection
√ Wrong polarity protection
√ Reverse battery protection
√ Safety timer protection

Packed with:
(1) MW CC-BC1: Battery Clamp Connector
(2) MW CC-ET1: Eyelet Terminal Connector
Dimension: 279 x 119 x 68mm
Packing: Individual color giftbox
